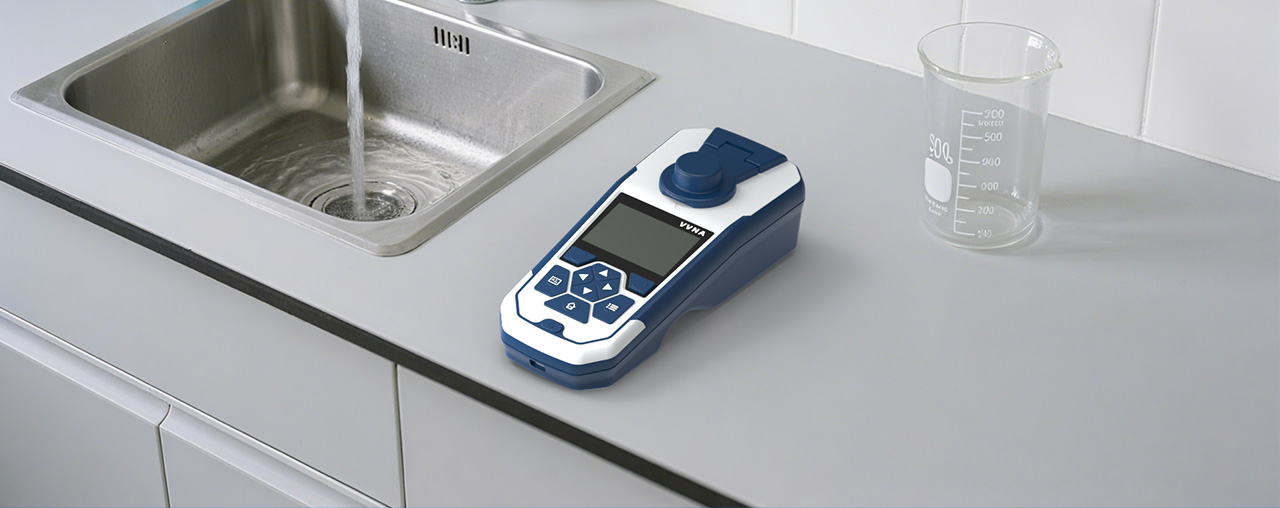

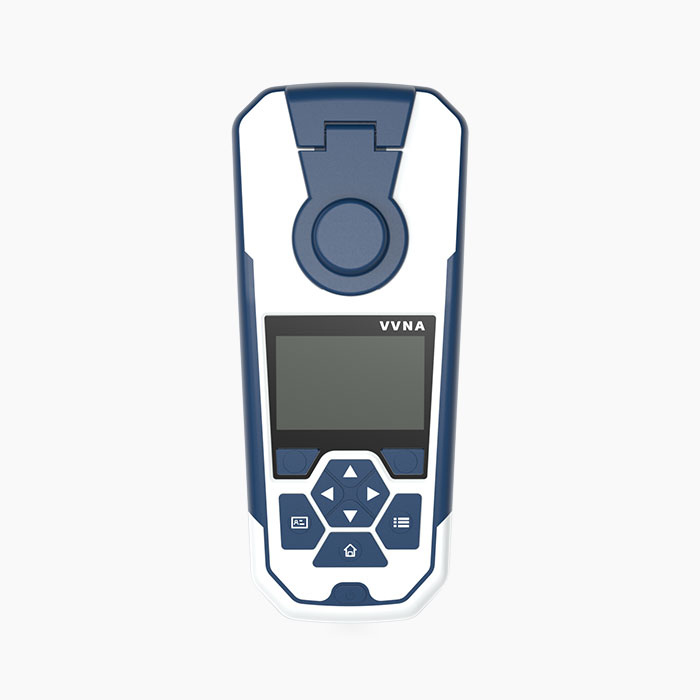

VN3100 Portable Turbidimeter

The VN3100 Portable Turbidity Meter is a high-precision portable turbidity measurement instrument launched by VVNA. It complies with the standards of EPA 180.1 and the corresponding Chinese National Standards (GB). Adopting the principle of 90° scattered light method combined with ratio measurement for turbidity determination, the instrument emits a beam of parallel light that passes through the sample. When the light encounters particles in the water, its propagation direction will be changed, resulting in light scattering. The instrument then detects the scattered light from the particles at an angle of 90° relative to the incident light. The degree of scattering is directly proportional to the number of suspended particles in the water.

The VN3100 Portable Turbidity Meter has a measurable turbidity range from 0 to 1000 NTU. Powered by 4 AA batteries, the meter can also be supplied with power via a 5V 500mA power adapter and a USB Type-C cable. It is mainly designed for on-site turbidity measurement of various water samples, featuring simple operation, high accuracy, and data storage functionality.

It is widely used in the fields of environmental protection, tap water supply, secondary water supply, health and disease control, governments and universities, municipal water supply, industrial water use, pharmaceutical industry, sewage treatment and other related sectors.

1. The turbidity is measured by the 90° scattering method and the ratio measurement technology, which makes the measurement results more accurate and reliable.

2. It comes with a built-in standard turbidity measurement program, which can measure all kinds of water sample even low turbidity and ultra-low turbidity level.

3. It comes with calibration function, single port and multi port calibration are workable, also can be calibrated by customized concentrations.

4. It comes with custom curves function, different water samples and field condition can be used to customize curves, meet various water quality measurement.

5. Easy to operate. It is simple to obtain the test result even without any reagents and professional knowledge.

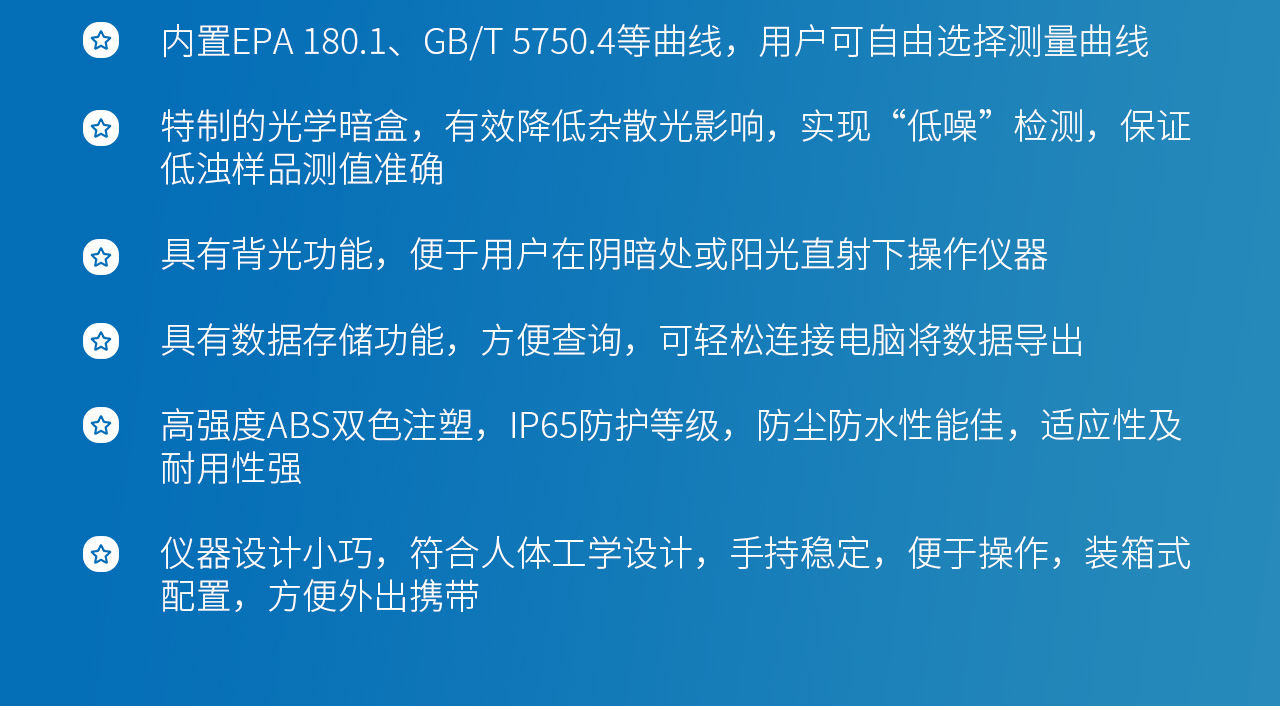

6. Built-in EPA 180.1, GB/T 5750.4 cureves, etc, which can be choosed freely as needed.

7. It comes with specially designed optical dark box, effectively reduce the influence of stray light, enabling "low light noise" detection and ensuring accurate measurement.

8. Use the design of cold light sources, with longer lifespan and better stability.

9. It comes with backlight function, which makes it convenient to operate in dim light or unser direct sunlight.

10. It comes with data storage function, easy to query and export the data to computer.

11. The IP65 protection grade design boasts excellent waterproof and dust-proof performance, as well as strong adaptability and durability.

12. Boasting a compact size,the device ensures stable handling, easy operation and convenient portability with its box-type configuration.
