Substandard Residual Chlorine in Secondary Water Supply: Risk Sources & Prevention Tactics

Substandard Residual Chlorine in Secondary Water Supply: Risk Tracing and Prevention Strategies

As the "last mile" before tap water reaches households, secondary water supply undertakes the important functions of water storage and pressure boosting. Residual chlorine acts as an "invisible guardian" for water quality safety in this process — it can continuously inhibit microbial growth and ensure the hygiene of tap water from water plants to residential faucets. However, issues such as equipment management and process operation in the secondary water supply link are prone to causing substandard residual chlorine levels, which not only weaken the disinfection effect but also may trigger multiple safety risks. Comprehensive control is required from pollution sources and risk hazards to prevention and control measures.

I. Four Major Pollution Pathways Leading to Residual Chlorine Loss in Secondary Water Supply

In secondary water supply systems, substandard residual chlorine is often accompanied by pollution hazards, which stem from both equipment maintenance omissions and process design flaws. Specifically, they can be summarized into four core pathways:

1. Inadequate Cleaning of Water Storage Facilities: A Breeding Ground for Microorganisms

If water tanks and reservoirs are not cleaned and disinfected in accordance with specifications for a long time (e.g., no cleaning for more than 6 months), under high-temperature conditions above 30℃ in summer, sediment and organic matter are prone to adhering to the tank walls to form dirt, and even green moss may grow. Meanwhile, residual microorganisms in the water body will multiply in large numbers using the dirt as a carrier, accelerating the consumption of residual chlorine in the water — the residual chlorine that could originally last for 12-24 hours may be completely depleted within 4-6 hours in severely polluted water tanks, resulting in the loss of disinfection capacity.

2. Failure of Protective Devices: Unblocked Entrances for External Pollution

The ventilation pipes and overflow pipes of some secondary water supply facilities are not equipped with protective nets, or the protective nets are damaged, leading to the entry of foreign objects such as mosquitoes, rodents, ants and fallen leaves into the water storage facilities. Pathogens such as Escherichia coli and Salmonella carried by mosquitoes will directly contaminate the water body and consume residual chlorine. If the manholes of outdoor water tanks are not covered and sealed, rainwater mixed with ground dust and garbage will seep in on rainy days, which not only dilutes the residual chlorine concentration but also introduces new microorganisms, further intensifying the consumption of residual chlorine.

3. Improper Pipeline Connection: Invisible Channels for Sewage Backflow

If the drain pipes and overflow pipes of water tanks are directly connected to the sewer, or the pipe orifices are submerged in sewer sewage, when the water pressure of the municipal pipe network fluctuates (e.g., water supply resumes after a cut-off), the sewer sewage may flow back into the water tank through the principle of "back siphonage". High-concentration organic matter and pathogens in the sewage will not only completely destroy the residual chlorine in the water body but also cause severe pollution of the water in the tank. Even if disinfection is supplemented subsequently, it will take a longer time to restore the residual chlorine to the standard.

4. Excessively Long Water Storage Time: "Expired" Natural Attenuation of Residual Chlorine

If the residence time of tap water in the water tank exceeds 24 hours, the residual chlorine will continue to attenuate due to natural volatilization and reaction with organic matter in the water body. According to industry data, when tap water stays in a closed water tank for 1 day at room temperature, the residual chlorine concentration will decrease by 30%-50%. If the water tank has a large volume and low water consumption (e.g., off-peak periods in old residential areas), the residence time may even exceed 48 hours, and the residual chlorine concentration is very likely to be lower than the requirement of "free chlorine in tap water at the end of the pipe network ≥ 0.05mg/L" specified in the Standards for Drinking Water Quality (GB 5749-2022), failing to achieve continuous disinfection.

II. Four Core Risks of Substandard Residual Chlorine: Chain Hazards from Water Quality to Health

Substandard residual chlorine in secondary water supply is not a simple indicator anomaly but will trigger a chain reaction from water quality deterioration to health threats. The specific risks can be divided into four categories:

1. Disinfection Failure: Sharp Increase in Pathogen Transmission Risks

The core function of residual chlorine is to kill bacteria (such as Escherichia coli and Legionella), viruses (such as norovirus and rotavirus) and parasite eggs in the water body. If the residual chlorine concentration is lower than 0.05mg/L, these pathogens cannot be effectively inactivated. When residents drink or use such water (e.g., gargling, washing fruits and vegetables), they may come into contact with pathogens, increasing the risk of contracting diseases such as gastroenteritis, dysentery and respiratory infections (such as Legionnaires' disease). Especially the elderly, children and other people with low immunity are more vulnerable.

2. Microbial Overgrowth: Vicious Cycle of Water Quality Pollution

After the inhibitory effect of residual chlorine on microorganisms disappears, bacteria and algae in the water body will multiply rapidly. The massive growth of bacteria will lead to an increase in water turbidity and the appearance of flocculent precipitates. Algae reproduction may cause the water to appear green, brown and other abnormal colors, and release metabolites at the same time, further deteriorating water quality. This vicious cycle of "microbial reproduction → consumption of residual chlorine → more microbial reproduction" will make the secondary water supply completely lose its health guarantee capacity and become a new source of pollution.

3. Sensory Deterioration: Odor and Discoloration Affecting Water Use Experience

Substandard residual chlorine is often accompanied by the deterioration of water quality sensory indicators. On the one hand, microbial metabolism will produce substances such as ammonia nitrogen and hydrogen sulfide, making the water have a fishy and putrid odor. On the other hand, if residual chlorine is excessively consumed due to reaction with organic matter, trace disinfection by-products (such as chlorophenol) may be generated, resulting in a pungent "medicinal taste" of the water. These odors and discoloration not only affect daily drinking and cooking but also may cause residents to worry about the safety of water quality.

4. Health Hazards: Potential Risks of Long-Term Exposure

Long-term drinking or use of water with substandard residual chlorine may not only directly lead to pathogen infection but also cause chronic health effects due to the intake of microbial metabolites (such as endotoxin), such as gastrointestinal dysfunction. If harmful algae breed in the water body due to insufficient residual chlorine, the algal toxins released may cause potential damage to the liver and kidneys. In addition, some microorganisms (such as iron bacteria) may attach to the inner wall of water pipes to form biofilms, accelerating pipeline corrosion and further polluting subsequent water bodies.

III. Three Key Measures for Preventing and Controlling Substandard Residual Chlorine: Full-Process Control from Monitoring to Management

To reduce the risk of substandard residual chlorine in secondary water supply, it is necessary to build a three-in-one prevention and control system of "monitoring, process and equipment". The specific measures are as follows:

1. Establish a Regular Monitoring Mechanism: Real-Time Mastery of Residual Chlorine Dynamics

In accordance with the requirements of the Sanitary Specifications for Secondary Water Supply Facilities (GB 17051-2025), a dual mechanism of "regular testing + real-time monitoring" should be established. Regular testing (e.g., once a week) can use professional instruments (such as DPD spectrophotometers) to detect the residual chlorine in the outlet water of water tanks. Communities with conditions can install online residual chlorine monitoring equipment to transmit data in real time. Once the residual chlorine is lower than the limit value (e.g., 0.05mg/L), an early warning will be triggered immediately to avoid risk accumulation.

2. Optimize Disinfection Processes: Precise Control of "Dosage and Time"

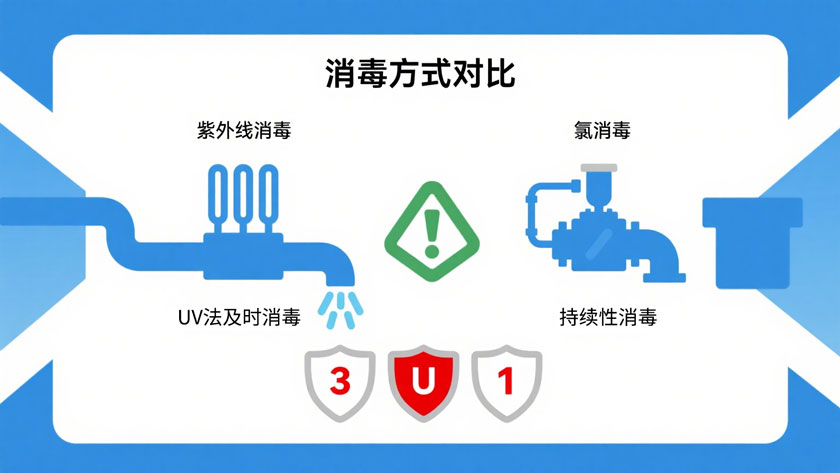

According to the scale of secondary water supply, water tank volume and water consumption, the disinfection scheme should be scientifically adjusted. For sodium hypochlorite disinfection, the disinfectant dosage should be calculated according to the water flow rate (usually dosed with a residual amount of 0.5-1mg/L). For ultraviolet disinfection, it is necessary to ensure that the disinfection contact time is ≥ 1 hour, and the ultraviolet lamp tubes should be cleaned regularly to avoid scaling affecting the disinfection effect. In addition, a small amount of disinfectant can be supplemented at the outlet of the water tank to ensure that the residual chlorine in the tap water at the end of the pipe network meets the standard.

3. Strengthen Full-Cycle Equipment Maintenance: Block Pollution Loopholes

Formulate a maintenance checklist for secondary water supply equipment: inspect the protective nets of ventilation pipes and the sealing condition of manholes quarterly, and replace damaged parts in a timely manner; thoroughly clean and disinfect water tanks and reservoirs every 6 months (soak with chlorine-containing disinfectant for more than 2 hours) to remove dirt and microorganisms; inspect the connection of drain pipes and overflow pipes annually to ensure a safe distance from the sewer (e.g., the outlet of the overflow pipe is more than 1.5 meters above the ground) and eliminate the risk of backflow.

Conclusion

Substandard residual chlorine in secondary water supply is essentially the result of "lack of disinfection guarantee" and "superimposition of pollution hazards", which may trigger multiple risks such as pathogen transmission, water quality deterioration and health threats. Only by mastering residual chlorine dynamics through regular monitoring, scientifically optimizing disinfection processes and strengthening equipment maintenance and management can we safeguard the hygiene line of secondary water supply. At present, VVNA disinfectant detectors have been widely used in secondary water supply, water plants, food processing and other scenarios. They can quickly and accurately detect residual chlorine residues, provide convenient technical support for residual chlorine compliance, and help build a safer secondary water supply system.

---

---
