Ammonia Nitrogen > Total Nitrogen? Complete Solutions for Causes and Troubleshooting — VVNA Guides You Through Core Contradictions in Water Quality Testing

"Total Nitrogen (TN) theoretically includes Ammonia Nitrogen (NH₃-N), so why is the measured ammonia nitrogen concentration higher than total nitrogen?" "The sum of ammonia nitrogen and nitrate nitrogen exceeds total nitrogen – clients will never accept this report!" In water quality testing laboratories, numerical inconsistencies between total nitrogen and its sub-indicators (e.g., ammonia nitrogen, nitrate nitrogen) are the most frustrating problem for testers. Such seemingly "illogical" results not only undermine data credibility but may also mislead water quality assessment and pollution control decisions. Starting from the definition of each indicator, this article breaks down the core causes of NH₃-N > TN anomalies and provides a 4-step troubleshooting guide, helping you completely resolve this critical testing pain point.

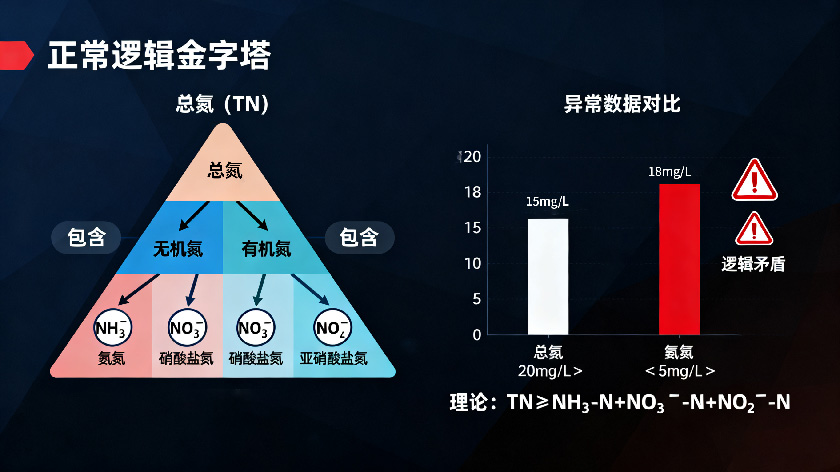

I. Clarify the Logic First: The "Inclusion Relationship" Between Total Nitrogen and Its Sub-indicators Must Not Be Confused

To resolve the contradiction of "NH₃-N > TN", we must first define the boundary of each indicator – the core definitions extracted from testing standards (e.g., HJ636-2012, HJ535-2009) are the basis for judging data rationality:

• Total Nitrogen (TN): The sum of all nitrogen-containing compounds in water, including inorganic nitrogen (ammonia nitrogen, nitrate nitrogen, nitrite nitrogen) and organic nitrogen (e.g., nitrogen in proteins and humic acids). It is a core indicator reflecting water eutrophication;

• Ammonia Nitrogen (NH₃-N): Nitrogen existing in the form of free ammonia (NH₃) and ammonium ions (NH₄⁺), which is an important component of total nitrogen;

• Nitrate Nitrogen (NO₃⁻-N) / Nitrite Nitrogen (NO₂⁻-N): Nitrogen existing in the form of nitrate ions and nitrite ions, respectively, both belonging to the inorganic nitrogen fraction in total nitrogen.

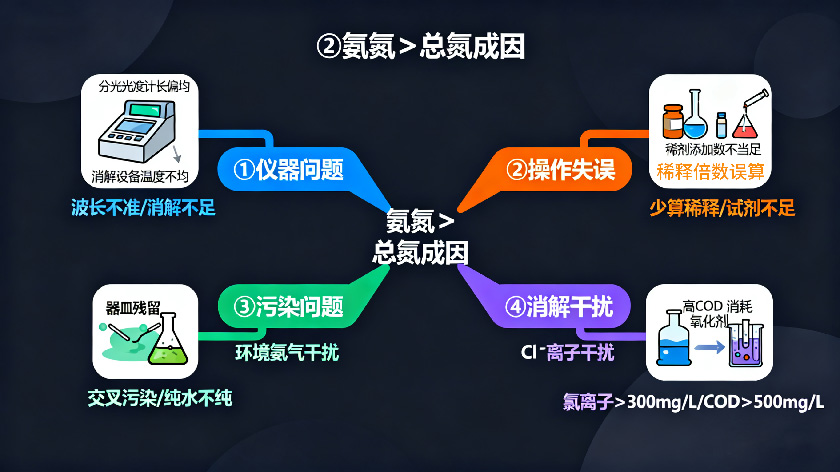

II. In-depth Analysis of Causes: 4 Categories of Problems Leading to "Illogical" Data

The essence of "NH₃-N > TN" is either an overestimation of the sub-indicator results (e.g., ammonia nitrogen, nitrate nitrogen) or an underestimation of the total nitrogen result. Specifically, it can be attributed to 4 core categories: instrument issues, operational errors, contamination, and interference.

1. Instrument Performance Failure: The Foundation of Accurate Testing Is Compromised

Instruments are the "rulers" of testing data – an inaccurate ruler will inevitably lead to distorted results:

Spectrophotometer Abnormality: Ammonia nitrogen testing requires a wavelength of 420 nm, while nitrate nitrogen testing requires wavelengths of 220 nm/275 nm. A wavelength deviation exceeding 2 nm or absorbance drift (e.g., caused by insufficient warm-up) will directly lead to an overestimation of sub-indicator nitrogen results;

Substandard Digestion Equipment: Total nitrogen testing requires digestion at 120℃±2℃ using a high-pressure steam sterilizer. If the equipment has uneven temperature distribution (e.g., only 110℃ in local areas) or an excessively fast heating rate, some samples will be insufficiently digested. Organic nitrogen and ammonia nitrogen will not be completely converted to nitrate nitrogen, resulting in a low total nitrogen result.

2. Operational Errors Hide Hidden Dangers: Minor Mistakes Trigger Chain Reactions

The standardization of the tester's operations directly determines data quality. The following errors are the most easily overlooked but have the greatest impact:

Dilution Error: When diluting high-concentration samples (e.g., industrial wastewater with NH₃-N > 100 mg/L), miscalculating the dilution factor by half (e.g., diluting 50 times instead of the required 100 times) will double the measured ammonia nitrogen value, directly exceeding total nitrogen;

Improper Reagent Addition: In total nitrogen testing, incomplete dissolution of potassium persulfate (requires heating and stirring until clear) will lead to insufficient oxidant and incomplete digestion. In ammonia nitrogen testing, insufficient (e.g., adding 0.5 ml instead of the required 1.0 ml) or excessive addition of Nessler's reagent will cause incomplete reaction or side reactions, resulting in abnormal results;

Insufficient Interference Masking: In nitrate nitrogen testing, failure to add sulfamic acid will not eliminate nitrite interference (nitrite produces absorbance at 220 nm). In the alkaline potassium persulfate digestion method, for total nitrogen samples with high chloride ion concentrations, chloride ions may be oxidized to ClO⁻ or ClO₃⁻, consuming the oxidizing capacity of potassium persulfate and leading to incomplete nitrogen oxidation. However, the absorbance interference of ClO⁻ will simultaneously cause an overestimation of results (this is irrelevant to the theme of this article, as it leads to a high total nitrogen value. Experiments have proven that when the chloride ion concentration increases from 0 mg/L to 1000 mg/L, the measured total nitrogen value increases from 10 mg/L to 13 mg/L, verifying the positive correlation between concentration and deviation.);

Sample Confusion: During batch testing, confusing the colorimetric tubes of high ammonia nitrogen samples (e.g., domestic sewage) with total nitrogen samples will result in "wrongly attributed" illogical data.

3. Contamination Problems Act Secretly: Invisible Sources of Error Are Difficult to Detect

Cross-contamination during the testing process will cause an "overestimation" of sub-indicator nitrogen results, thus exceeding total nitrogen:

Container Contamination: Inadequate cleaning of glass containers such as colorimetric tubes and volumetric flasks (e.g., residual traces of the previous batch of high ammonia nitrogen samples) or contact with nitrogen-containing impurities during drying will lead to high measured values of ammonia nitrogen and nitrate nitrogen in subsequent tests. Alternatively, scratches on containers used for ammonia nitrogen testing (while containers for total nitrogen testing are intact) will cause high absorbance readings for ammonia nitrogen;

Reagent/Pure Water Contamination: Ammonia nitrogen in experimental pure water (e.g., caused by aging distillers), nitrogen-containing impurities in Nessler's reagent, or insufficient purity of sulfuric acid used for nitrate nitrogen testing will directly lead to "distorted" measured values. A laboratory once experienced a 30% or higher overestimation of all ammonia nitrogen results due to excessive ammonia nitrogen in pure water;

Environmental Cross-Contamination: Volatilization of ammonia water reagent used for ammonia nitrogen testing, when placed in the same laboratory as total nitrogen samples, will cause a "passive increase" in ammonia nitrogen sample concentration. This is more likely to occur in laboratories with poor ventilation. Alternatively, ammonia gas in the testing environment will lead to high ammonia nitrogen values, while ammonia nitrogen volatilization during total nitrogen testing will lead to low total nitrogen values.

4. Digestion and Interference Hinder Accuracy: The Core Cause of Low Total Nitrogen Results

Total nitrogen testing requires a "digestion and conversion" step (converting all nitrogen-containing compounds to nitrate nitrogen), which is the primary source of low total nitrogen results:

Incomplete Digestion: Failure to meet standard digestion conditions (maintaining 120℃±2℃ for 30 minutes) or poor sealing of digestion tubes (leading to ammonia nitrogen volatilization) will result in incomplete conversion of organic nitrogen and ammonia nitrogen to nitrate nitrogen, leading to a low total nitrogen result;

Chloride Ion Interference (Most Common): When the sample Cl⁻ concentration exceeds 300 mg/L, it will react with alkaline potassium persulfate to produce chlorine gas, consuming the oxidant. Experimental data shows that at a Cl⁻ concentration of 1000 mg/L, the measured total nitrogen value is 30%-50% lower than the true value. When the concentration exceeds 2000 mg/L without the addition of a masking agent, total nitrogen may even be undetectable;

High Organic Matter Interference: When the sample COD exceeds 500 mg/L, a large amount of organic matter will consume potassium persulfate, leading to insufficient oxidant for digestion and incomplete conversion of organic nitrogen, resulting in a low total nitrogen result. This interference can be reduced by diluting the water sample.

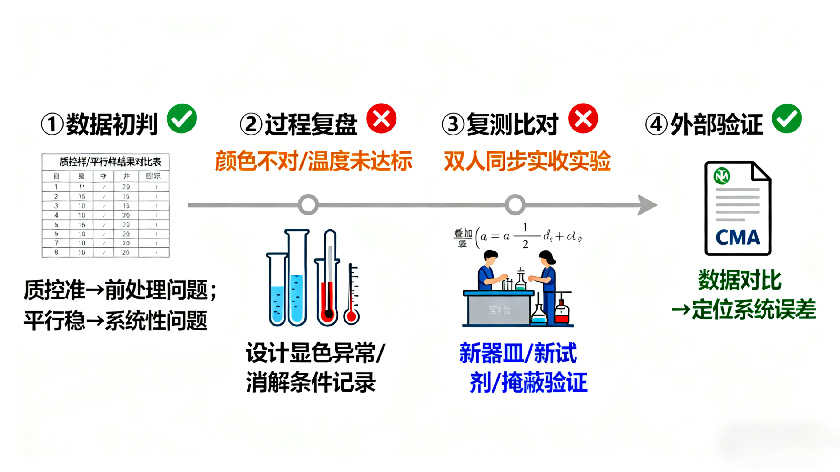

III. Practical Guide: 4-Step Troubleshooting Method to Locate the Root Cause

Faced with abnormal "NH₃-N > TN" data, blind retesting is inefficient. Systematic troubleshooting according to the following steps can quickly locate the problem:

1. Step 1: Initial Data Judgment to Narrow Down the Scope

Initially judge the type of problem through the results of quality control samples and parallel samples:

If quality control sample results are accurate (e.g., the standard value of an ammonia nitrogen quality control sample is 10.0 mg/L, and the measured value is 9.8-10.2 mg/L), spectrophotometer malfunctions, pure water/reagent contamination, and colorimetric tube contamination can be ruled out. Focus on troubleshooting the sample pre-treatment process;

If parallel sample results are stable (relative deviation ≤ 5%), accidental errors during operation (e.g., reading mistakes during dilution) can be ruled out. Focus on systematic problems such as instrument stability and digestion conditions;

If only a single sample is abnormal, priority should be given to troubleshooting sample mix-ups and container cross-contamination. If multiple samples are abnormal, focus on inspecting instruments, reagents, and digestion equipment.

2. Step 2: Process Review to Find Clues

Ask the tester to carefully review the operation process, with a focus on recording the following "abnormal signals":

Abnormal Color Reaction: For example, the normal yellow color does not appear in ammonia nitrogen testing, or the color is too dark/too light; the solution is turbid after total nitrogen digestion (it should be clear under normal conditions);

Non-standard Pre-treatment: For example, whether the total nitrogen digestion reached 120℃ and was maintained for 30 minutes, whether the dilution factor was verified during dilution, and whether the reagent addition amount was implemented in accordance with the standard;

Environmental Interference: For example, whether ammonia water was used in the laboratory at the same time, and whether the samples were stored together with high-concentration nitrogen-containing samples.

3. Step 3: Retesting and Comparison for Precise Positioning

Take a reserved sample of the same water sample and conduct simultaneous retesting by two experienced testers. Focus on the following key links to achieve "point-to-point" troubleshooting:

1. Sample and Container Verification: Confirm that the retest sample is from the same sampling point and batch as the original sample, and that the preservation conditions meet the standard (e.g., ammonia nitrogen samples need to be refrigerated and tested within 24 hours). Use newly cleaned and dried colorimetric tubes and volumetric flasks to rule out container contamination;

2. Reagent and Pure Water Verification: Replace with a new batch of reagents (e.g., potassium persulfate, Nessler's reagent) and use freshly prepared ultrapure water. Conduct a "blank experiment" (testing with pure water and reagents only). A high blank value indicates reagent or pure water contamination;

3. Standardized Pre-treatment Operations: Strictly perform digestion (e.g., for total nitrogen digestion, close the pressure valve of the high-pressure steam sterilizer only after steam is emitted to ensure temperature compliance), dilution (using a pipette for accurate measurement), and masking (e.g., adding mercury sulfate in a 10:1 ratio according to the Cl⁻ concentration for total nitrogen testing) in accordance with the standard;

4. Spiked Recovery Verification: Add a standard substance of known concentration to the sample (e.g., adding a 10.0 mg/L ammonia nitrogen standard solution to the water sample). A spiked recovery rate within the range of 95%-105% indicates no significant interference. A low recovery rate (e.g., < 80%) indicates the presence of interfering substances or incomplete digestion. A high recovery rate (e.g., > 110%) indicates contamination;

5. Data Record Verification: Check the dilution factor, absorbance reading, standard curve calculation, and other data to rule out "basic mistakes" (e.g., miscalculating a 100-fold dilution as 10-fold, leading to a 10-fold overestimation of the result).

4. Step 4: External Verification for Ultimate Confirmation

If the root cause is still not found after retesting, send the same sample to an external laboratory with CMA certification for testing, and compare the total nitrogen, ammonia nitrogen, and other data between the two laboratories:

If the external data is consistent with the retest data and follows the logical relationship (TN ≥ sum of sub-indicators), it indicates a systematic problem in the original testing process (e.g., uncalibrated instruments);

If there is a significant difference between the external data and the original data, focus on troubleshooting laboratory-specific issues such as environment, reagents, and instruments in the original laboratory.

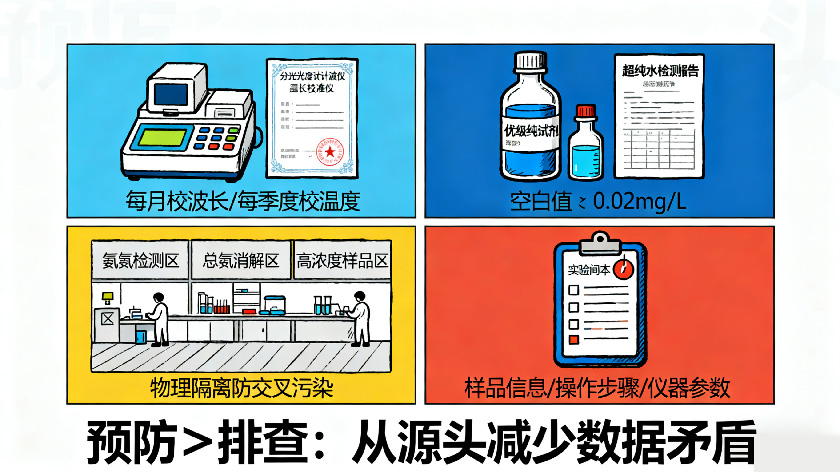

IV. Key Reminders: Remember These "Pitfall Avoidance Tips"

To fundamentally reduce the occurrence of "NH₃-N > TN" problems, the following preventive measures must be implemented in daily testing:

1. Regular Instrument Calibration: Calibrate the wavelength of the spectrophotometer monthly and the temperature of the high-pressure steam sterilizer quarterly to ensure the "ruler" is accurate;

2. Reagent and Pure Water Control: Use guaranteed reagent (GR) grade chemicals. Regularly test the ammonia nitrogen and nitrate nitrogen content of pure water (the blank value must be < 0.02 mg/L);

3. Zoned Operations: Conduct ammonia nitrogen testing, total nitrogen digestion, and high-concentration nitrogen-containing sample processing in separate laboratory zones to avoid cross-contamination;

4. Standardized Recording: Record sample information, operation steps, and instrument parameters in detail to facilitate quick review when problems occur.

In summary, "NH₃-N > TN" is not an unsolvable testing problem but a "human error" caused by controllable factors such as instruments, operations, contamination, and interference. As long as you master the core method of "logic clarification – cause analysis – systematic troubleshooting", you can restore the rationality of testing data and provide reliable support for water quality assessment and pollution control. What other data inconsistencies have you encountered in experiments? Welcome to share your experience in the comment section!
