VVNA | Definition of Turbidity and the Importance of Turbidity Meters: The Core Value of VVNA Portable Turbidity Meters in Water Quality Monitoring

I. Core Definition and Unit Standardization of Turbidity

Turbidity, defined as the cloudiness of water, is an optical indicator that measures the reduction in water transparency caused by insoluble substances. These substances include solid particles (such as sediment, humus, and planktonic algae) and colloidal particles. These insoluble materials scatter incident light; the higher the turbidity, the stronger the light obstruction by the water body.

In terms of units, turbidity representation methods are divided into NTU, FTU, FAU, etc., depending on the measurement principle. China's current water quality standards and specifications have uniformly adopted NTU (Nephelometric Turbidity Units), which is specifically used to quantify the scattered light effect produced by insoluble substances in water when light passes through. This standard also provides a unified benchmark for the detection data of devices such as portable turbidimeters and online turbidimeters, ensuring the comparability of turbidity data across different scenarios.

II. Key Value of Turbidity: The Weather Vane for Water Quality Safety and Process Control

For water supply treatment (e.g., water treatment plants) and industrial water treatment (e.g., circulating cooling, demineralized water preparation), turbidity is an indispensable core indicator. Its level is directly related to water quality safety and treatment efficiency:

• Reducing Turbidity Equals Reducing Risks: Turbidity is positively correlated with pollutants in water such as bacteria, coliforms, viruses, Cryptosporidium, iron, and manganese. Research data shows that when the turbidity is 2.5 NTU, the organic matter removal rate in water is only 27.3%; when the turbidity is reduced to 0.5 NTU, the organic matter removal rate increases to 79.6%; when the turbidity is controlled at 0.1 NTU, the vast majority of organic matter and pathogenic microorganisms are removed.

• Strict Turbidity Standards: The tap water standard issued in 2007 requires the turbidity of finished drinking water to be ≤ 0.5 NTU. Most water plants implement more stringent internal control standards (e.g., around 0.2 NTU), and the Shanghai Tap Water Company even requires the turbidity of finished water to be ＜ 0.1 NTU. In the industrial field, the turbidity of makeup water for circulating cooling water treatment must be controlled at 2~5 NTU, and the turbidity of influent water for demineralized water treatment must be ＜ 3 NTU.

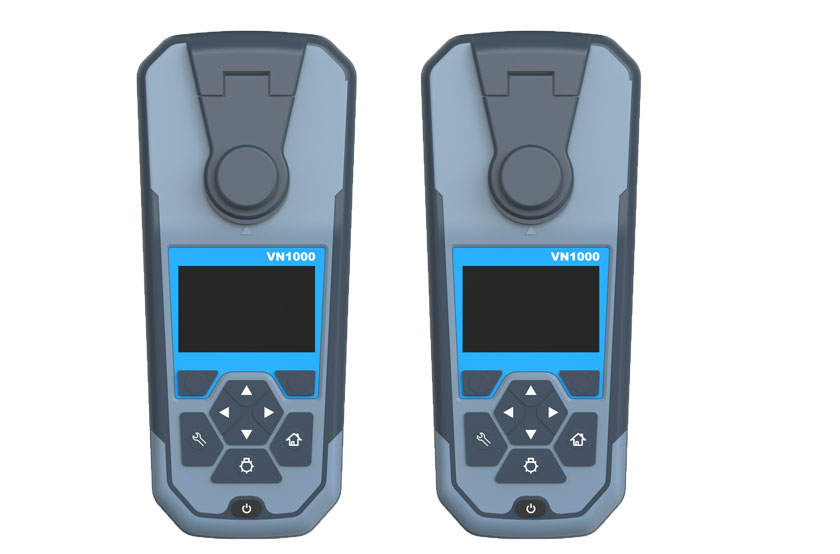

Precisely because of these strict requirements, real-time and accurate monitoring of water turbidity is particularly necessary. With the advantage of "ready-to-use without fixed sites", portable turbidimeters have become an important tool to meet the monitoring needs of multiple scenarios.

III. Core Scenarios of Turbidity Monitoring: Full-Process Coverage from Water Plants to Sewage Treatment Plants

Turbidity monitoring runs through the entire water treatment chain. Different scenarios have different flexibility requirements for monitoring equipment, and portable turbidimeters play a unique role in this regard:

1. Tap Water Treatment Scenario: In the monitoring of pre-filtration, post-filtration, sedimentation processes, and finished water in water plants, in addition to real-time monitoring by online turbidimeters, staff can conduct random sampling inspections with portable turbidimeters to review the accuracy of online data. In the water quality monitoring of municipal pipe networks, considering the characteristics of wide pipe network coverage and scattered monitoring points, portable turbidimeters can be flexibly carried to the end-user side of the water supply network for rapid detection of whether the water quality meets the standard, avoiding turbidity abnormalities caused by pipe network aging.

2. Industrial Water Treatment Scenario: In the daily monitoring of circulating cooling water, effluent from activated carbon filters, and effluent from membrane filtration, if it is necessary to temporarily investigate the cause of turbidity fluctuations, there is no need to rely on fixed industrial turbidity equipment. Portable turbidimeters can directly conduct tests in workshops and beside equipment to provide real-time feedback on whether the turbidity is within the qualified range (e.g., 2~5 NTU for circulating water).

3. Sewage Treatment Scenario: In processes such as aeration tanks, secondary sedimentation tanks, and thickening tanks in sewage treatment plants, turbidity needs to be regularly monitored to evaluate treatment effects. Portable turbidimeters can assist online equipment in completing multi-point comparison, ensuring that the data truly reflects the water quality status in the tanks.

IV. Three Core Concepts of Turbidity: Key Premises for Understanding Monitoring

1. Turbidity is an Optical Effect Unit: Turbidity detectors (including portable turbidimeters) are usually installed at a position 90° to the incident light to detect the 90° scattered light of particles in water. Its unit, NTU, has no direct dimensional conversion relationship with weight concentration units such as mg/L. It is necessary to establish a correlation model for specific water bodies through experiments.

2. Pure Water Also Has Turbidity: The turbidity of pure water under ideal conditions is approximately 0.01~0.012 NTU. The detection of this ultra-low turbidity range requires high-precision equipment (such as laser turbidimeters), while portable turbidimeters can also meet the detection needs of conventional low-turbidity scenarios (e.g., 0.1~40 NTU).

3. Linear Range of Turbidity: Turbidity shows a linear relationship in the range of 0~40 NTU. When using a portable turbidimeter within this range, only a single-point calibration with a standard solution is required to ensure detection accuracy, which greatly simplifies the on-site operation process.

V. Detection Methods and Types of Turbidimeters: Technical Adaptability of Portable Turbidimeters

Currently, the mainstream turbidity detection methods are USEPA 180.1 and ISO 7027. The core principle is to emit incident light through a light source and detect the 90° scattered light generated by particles in water. Compared with the transmitted light method, this method has higher resolution and repeatability. Portable turbidimeters also generally adopt this principle to ensure the consistency between on-site detection data and laboratory data.

In terms of instrument types:

• Tap water treatment mostly uses turbidimeters with incandescent or infrared light sources; sewage treatment mainly uses infrared light sources; laser turbidimeters are used in ultra-low turbidity scenarios such as membrane treatment and direct drinking water.

• Although portable turbidimeters are compact in size, they can be adapted to different light sources according to scenarios (e.g., infrared light for routine detection, incandescent light for low-turbidity review). They can not only meet the ultra-low range detection of less than 0.1 NTU for finished water in water plants but also cope with the temporary monitoring of medium and high turbidity (e.g., ＞ 40 NTU) in sewage treatment plants. They have become a "bridge" device connecting precise laboratory analysis and real-time on-site management and control.

Conclusion: The Importance of Turbidimeters and the Irreplaceability of Portable Devices

Turbidimeters are core tools for ensuring water quality safety and optimizing water treatment processes. With the advantages of "portability, flexibility, and accuracy", portable turbidimeters make up for the shortcomings of online turbidimeters (fixed points) and laboratory equipment (lag). Whether it is the sampling inspection of tap water at the end of municipal pipe networks, temporary investigation in industrial workshops, or multi-point comparison in sewage treatment plants, portable turbidimeters can quickly output reliable NTU data, providing real-time support for water quality monitoring and management. They have become an indispensable part of the modern water quality management system.

---

---
