VVNA | Water Level and Turbidity: The Core Dual Parameters for Groundwater Quality Monitoring — On-Site Application Value of VVNA Portable Turbidity Meters

As a vital component of global freshwater resources, groundwater serves as a critical guarantee for agricultural irrigation, industrial production, and urban-rural water supply. However, with the accelerated pace of industrialization and urbanization, problems such as groundwater pollution (e.g., heavy metal leakage, organic matter infiltration) and over-exploitation have become increasingly prominent. Accurate monitoring of groundwater quality has thus emerged as a core link in water resource protection. Within the groundwater quality monitoring system, water level and turbidity are two irreplaceable key parameters — water level reflects the dynamic changes of water resources, while turbidity reveals water cleanliness. The synergistic monitoring of these two parameters enables a comprehensive assessment of groundwater conditions, and the application of portable turbidimeters has further improved the on-site efficiency and accuracy of turbidity monitoring.

I. Water Level Monitoring: The Barometer for Grasping Groundwater Dynamics

Water level is the core indicator for measuring the "quantity and potential" of groundwater. Its changes are directly related to the sustainability of water resources and the ecological safety of surrounding areas. Its importance in monitoring is reflected in three aspects:

1. Reflecting the Balance of Recharge and Discharge: Under normal circumstances, groundwater level is affected by factors such as precipitation recharge, surface runoff infiltration, and artificial exploitation, and should maintain a relatively stable range (e.g., the annual variation of shallow groundwater in plain areas is usually <1m). Real-time monitoring via water level observation wells equipped with automatic water level gauges can detect anomalies. An abnormal drop (e.g., a monthly decrease of more than 0.5m) may indicate aquifer depletion due to over-exploitation; an abnormal rise (e.g., a sudden increase of more than 1m after rainfall) may be accompanied by the infiltration of surface sewage and agricultural runoff, laying the groundwork for a "pollution early warning" in subsequent turbidity monitoring.

2. Early Warning of Ecological and Environmental Risks: A continuous decline in water level can easily trigger land subsidence (e.g., in some areas of the North China Plain, excessive groundwater exploitation has led to an annual subsidence of more than 10mm) and soil salinization (in arid areas, falling water levels cause the rise of underground saltwater). Excessively high water levels may lead to soil swamping, damaging vegetation growth. These ecological problems, in turn, can adversely affect groundwater quality — for example, land subsidence can cause pipeline damage, potentially introducing external pollutants and indirectly increasing turbidity.

3. Supporting Water Resource Allocation: Water level monitoring data serves as the basis for controlling groundwater exploitation volume. For example, agricultural irrigation pumping volumes can be adjusted based on water level changes to prevent the aquifer water level from dropping below the pollution interface due to over-exploitation, which could trigger the intrusion of deep polluted water and subsequently affect water quality indicators such as turbidity.

II. Turbidity Monitoring: The Intuitive Ruler for Judging Groundwater Cleanliness

Turbidity is the key indicator for measuring whether groundwater contains suspended pollutants. Its core is the light scattering effect caused by suspended particles in water (e.g., sediment, colloids, microbial flocs). The application of portable turbidimeters has transformed turbidity monitoring from "lagging laboratory analysis" to "on-site real-time judgment", greatly improving monitoring efficiency:

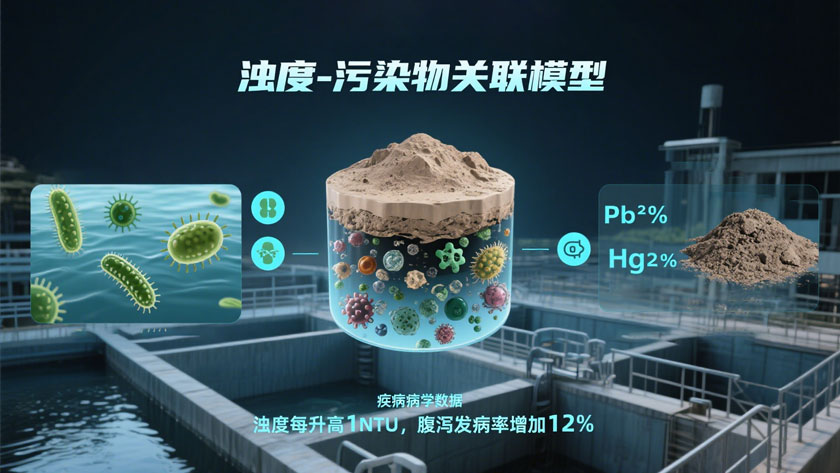

1. Direct Correlation Between Turbidity and Water Quality Safety: An increase in groundwater turbidity (e.g., exceeding 5 NTU) often indicates external pollution or aquifer disturbance. For example, after heavy rainfall, rising water levels can cause surface sediment to infiltrate groundwater with rainwater, leading to a sudden increase in turbidity. Colloidal particles and heavy metal complexes in leachate from industrial waste residues can also elevate turbidity. These suspended particles may adsorb toxic substances such as arsenic and lead, and long-term consumption can harm liver and kidney functions. On-site testing with portable turbidimeters enables rapid screening of such risks. For instance, after sampling from a field observation well, there is no need to transport the sample back to the laboratory. A portable turbidimeter (compliant with HJ 1075-2019 standard, equipped with an 860nm infrared light source) can provide instant readings. If a turbidity value >3 NTU is detected, further pollution source tracking can be initiated immediately.

2. On-Site Adaptability Advantages of Portable Turbidimeters: Groundwater monitoring points are mostly distributed in the field (e.g., observation wells in mountainous areas or beside farmland). Traditional laboratory turbidimeters require sample transportation, which can easily lead to data distortion due to sample sedimentation and temperature changes. In contrast, portable turbidimeters are compact (usually weighing <1kg) and easy to operate, allowing staff to carry them around. After sampling, simply pour the water sample into a dedicated sample bottle and place it in the instrument to obtain the NTU value within 30 seconds. Their infrared light sources can also eliminate potential color interference in groundwater (e.g., some groundwater is pale yellow due to humus content), ensuring data accuracy. For example, in rural decentralized groundwater supply points, regular testing with portable turbidimeters can quickly determine whether the water quality meets the rural water supply standard of "turbidity ≤3 NTU" (extended requirement of GB 5749-2006).

3. Synergistic Linkage Between Turbidity and Water Level: Changes in water level are often accompanied by turbidity fluctuations. Correlated data from both parameters can more accurately determine the cause of pollution. For example, if a portable turbidimeter detects a simultaneous increase in turbidity when the water level drops, it may indicate that sediment at the bottom of the aquifer has been disturbed due to aquifer depletion. An increase in turbidity when the water level rises may indicate the infiltration of surface pollutants with seepage water. Through the linkage analysis of these two parameters, the scope of pollution source tracking can be narrowed, avoiding blind investigation.

III. Synergistic Monitoring of Water Level and Turbidity: Technology Integration Improves Management Efficiency

Monitoring only water level or turbidity is insufficient for a comprehensive assessment of groundwater quality. Synergistic monitoring requires "multi-technology integration", and portable turbidimeters play the role of "on-site data entry points" in this process:

1. Combination of Real-Time Monitoring and On-Site Screening: Beside groundwater observation wells, automatic water level gauges (transmitting real-time water level data) can be combined with regular on-site sampling (testing turbidity with portable turbidimeters) to form a monitoring combination of "dynamic water level + real-time turbidity". For example, if an automatic water level gauge at an observation well in an industrial park shows an abnormal rise in water level, staff can immediately go to the site with a portable turbidimeter for testing. If turbidity also increases simultaneously, it can be quickly determined that there may be industrial wastewater leakage, and pollution interception measures can be taken in a timely manner.

2. GIS Technology for Integrating Spatial Data: Importing water level monitoring data and on-site turbidity data from portable turbidimeters into a GIS system can intuitively present the spatial distribution rules of both parameters. For example, in a river basin, if the water level of downstream observation wells is lower than that of upstream wells, and portable turbidimeters detect higher turbidity downstream, it may indicate that upstream pollutants are moving downstream with groundwater flow, providing spatial positioning basis for river basin pollution control.

3. Linkage Analysis with Other Indicators: Combining turbidity data from portable turbidimeters, water level data, and laboratory-tested heavy metal and organic matter indicators, a comprehensive assessment system of "physical properties (turbidity) - water quantity dynamics (water level) - chemical pollution (heavy metals)" can be constructed. For example, if an increase in turbidity is accompanied by excessive lead and cadmium levels, it can be determined that the pollution is caused by the infiltration of heavy metal-containing suspended particles, rather than simple sediment disturbance, providing a scientific basis for targeted treatment.

IV. Conclusion: Protecting Groundwater Resources with Core Dual Parameters + Portable Technology

In groundwater quality monitoring, water level and turbidity play core roles in "water quantity dynamic early warning" and "water cleanliness judgment", respectively. The synergistic monitoring of these two parameters is the basis for a comprehensive understanding of groundwater conditions. The application of portable turbidimeters has broken the scenario limitations of traditional turbidity monitoring, enabling the rapid acquisition of accurate on-site turbidity data and greatly improving the timeliness and coverage of groundwater monitoring — from observation wells in remote mountainous areas to rural decentralized water supply points, portable turbidimeters can play an efficient role.

In the future, it is necessary to further promote the linkage mode of "automatic water level monitoring + on-site sampling with portable turbidimeters + precise laboratory review". At the same time, combined with the Internet of Things (IoT) technology, on-site data from portable turbidimeters can be uploaded to the monitoring platform in real time, achieving "real-time data and intelligent management and control". This will provide more solid technical support for the sustainable utilization of groundwater resources and environmental protection.

---

---
